Telecentric lens MSS-L-YX33
●Both side telecentric lens with telecentric structure on both object side and image side. ●There is no image distortion due to the field of view, and shape measurement accuracy for parts with depth is greatly improved. ●Effective when used for more accurate measurements
Product description
bilateral telecentric lens
Image distortion due to field of view is small,
greatly improving shape measurement accuracy for parts with depth
●Both side telecentric lens with telecentric structure on both object side and image side.
●There is no image distortion due to the field of view, and shape measurement accuracy for parts with depth is greatly improved.
●Effective when used for more accurate measurements
Technical parameter
| Model | MSS-L-YX01 | MSS-L-YX02 | MSS-L-YX33 |
|---|---|---|---|
| optical magnification | 0.1ｘ | 0.3ｘ | 0.5ｘ |
| Working distance （W.D） |
228mm±4mm | 110±2mm | 65±1ｍｍ |
| depth of field | 34.8mm | 6mm | 5mm |
| Numerical aperture （N.A） |
0.01 | 0.04 | 0.05 |
| optical distortion | 0.01 | 0.01 | 0.1 |
| Mount | C-Mount | C-Mount | C-Mount |
| compatible camera | 1/1.8″ | 2/3″ | 2/3″ |
| Field of vision 1/2inch camera (H x V) |
56.8mmx42.6mm | 21.3mmx16.0mm | 12.0mmx9.8mm |
| Field of vision 1/3inch camera (H x V) |
42.6mmx31.9mm | 16.0mmx12.0mm | 9.8mmx7.0mm |
| Field of vision 2/3inch camera (H x V) |
—— | 29.3mmx22.0mm | 16.9mmx14.2mm |

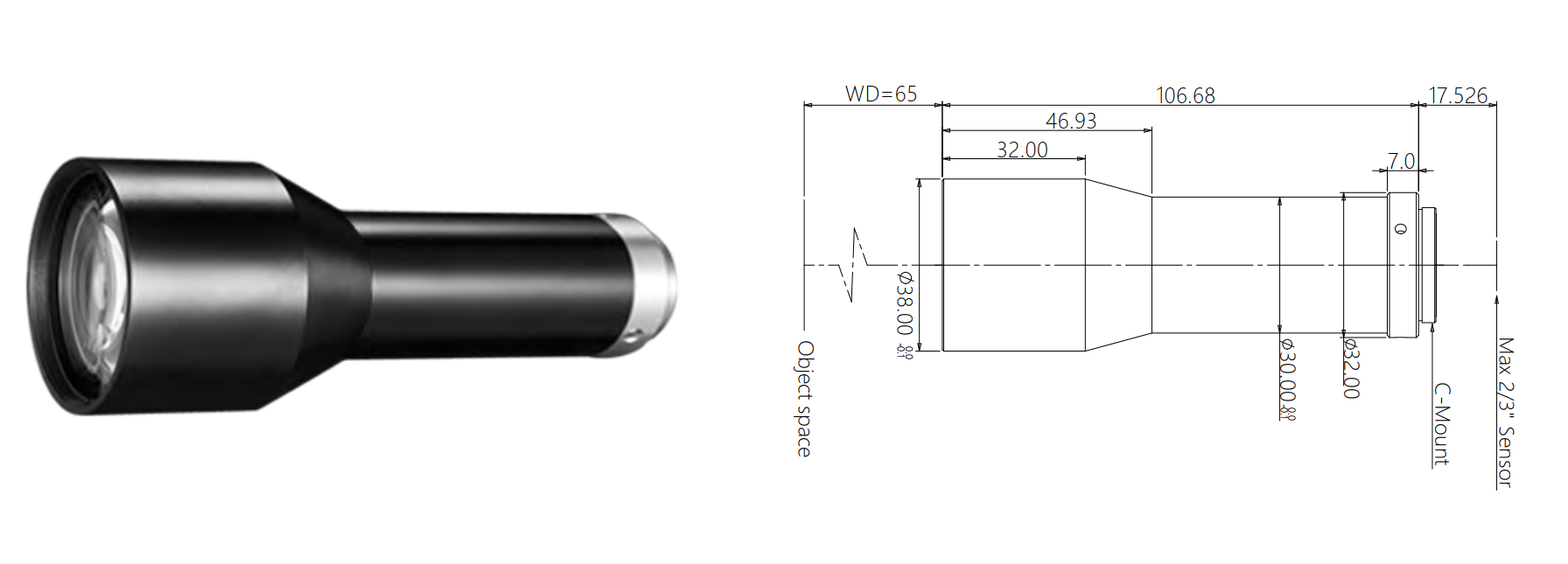

MSS-L-YX01
MSS-L-YX02
MSS-L-YX33
